The Living Wall You Can Take Apart.
Living Plants As An Engineered Service.
Traditional living walls fail from high-altitude maintenance and difficult root access. JOMETRY replaces tedious on-site gardening with pre-cultivated cassette exchange and active root rhizosphere biofiltration.
Curated low-light, high-transpiration species proven for active indoor air purification.
Microbial root-zone active filtration metabolizes airborne VOC pollutants into plant nutrients.
IoT moisture sensor telemetry with automated fertigation and 1.2s overflow cutoff.
01 Active Root-Zone Air Purification
Root Rhizosphere Dynamic Particle Flow
Air passes through the living root medium, not simply across outer foliage.
In conventional green walls, air only touches the leaf surface. In JOMETRY's active biofiltration configuration, ambient room air is drawn into the negative-pressure cavity directly through the inorganic wicking matrix and root rhizosphere.
The beneficial symbiotic microbes residing on plant roots break down hazardous VOC pollutants (formaldehyde, benzene, toluene) and particulate matter, converting them into non-toxic plant nourishment.
Zero Soil · Zero Pathogens
100% soil-free rigid inorganic wicking substrate. Eliminates soil gnats, mold spores, and bacterial contamination in occupied commercial and healthcare spaces.
02 4-Layer Leak Defence Architecture
Waterproofing is engineered with 4 layers of mechanical and electronic redundancy to protect host building structures:
1. Impermeable Recycled Polymer Cassette Body
Each 500 × 500 mm cassette is thermoformed from recycled polymer with a 100% watertight rear body. Water is wicked evenly through a rigid inert inorganic medium with zero soil, preventing soil-borne pathogens and mold.

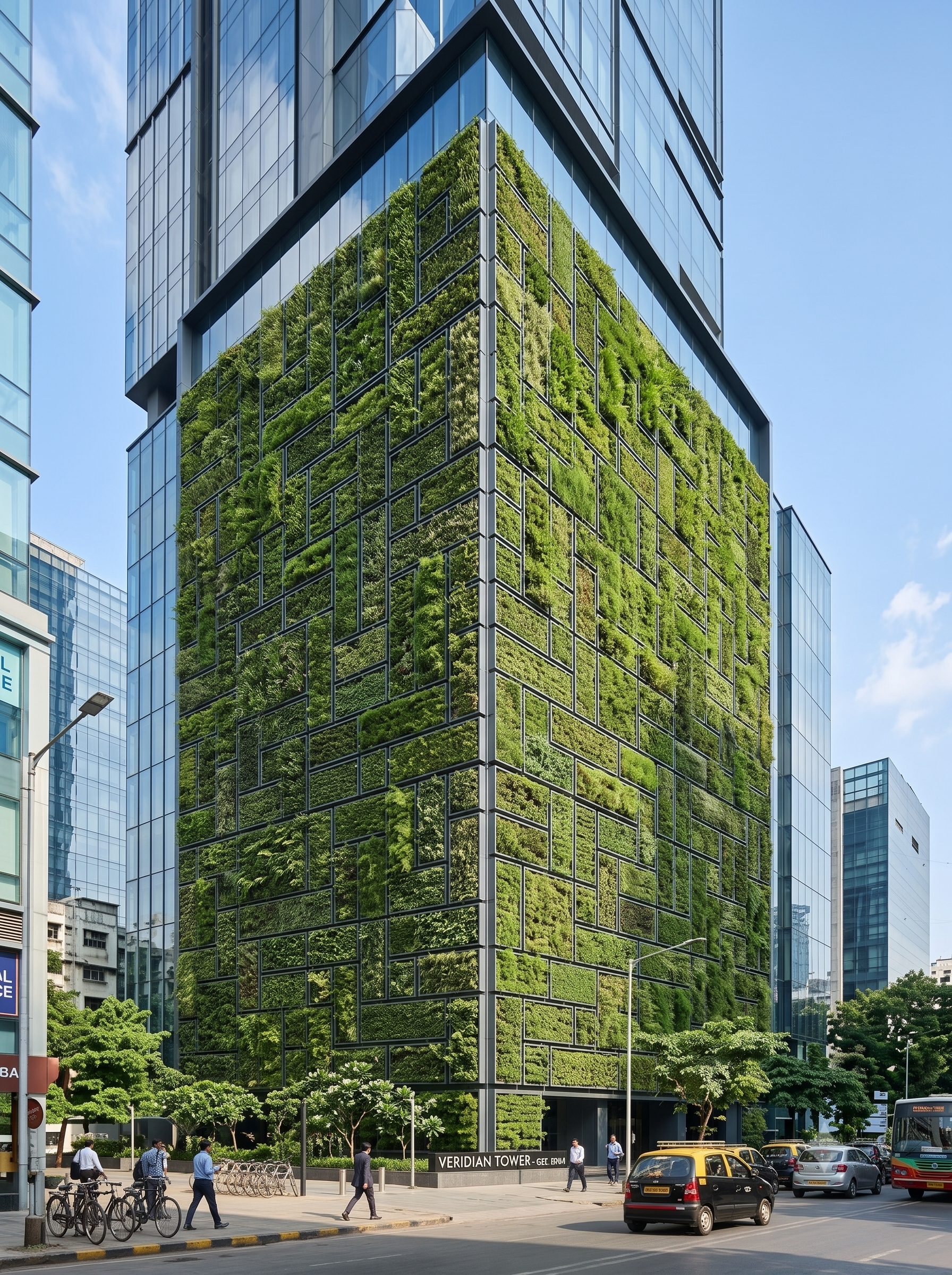

03 Exterior Living Facades & Engineering
Architectural scale rainscreen cladding integrating native flora, thermal dampening, and rainwater buffering. Engineered for high wind load and tropical climate extremes, JOMETRY exterior cassettes mount securely to primary building substructures while maintaining 100% demountability.
Positive/negative pressure cycles withstand cyclonic gusts and building sway.
Evapotranspiration slashes building HVAC cooling loads and urban heat island effect.
Buffers monsoon downpours and integrates with building greywater systems.
Exterior Living Facade Parameters
| Parameter | Design Value | Status |
|---|---|---|
| Substrate Medium | Rigid inert inorganic wicking matrix | CERTIFIED |
| Wind Load Resistance | Tested to 2.4 kPa positive/negative | VERIFIED |
| Irrigation Control | Concealed closed-loop automated drip | STANDARD |
| Thermal Attenuation | Reduces facade temp by up to 14°C | FIELD TESTED |
| Fire Performance | Non-combustible sub-frame (ASTM E84) | COMPLIANT |
