Product Catalogue & CSI Specification Builder

Filter through platform variants across all 4 architectural typologies, view slide-out technical data drawers, generate tender-ready CSI 3-part specifications, and review delivered Mumbai project references.

Configure CSI Specification Browse Variant Catalogue Delivered Mumbai Projects

Interactive Tender Tool · CSI 3-Part MasterFormat

01 CSI Specification Builder

Div 09 22 00 · Div 10 22 19 · Div 27 11 00

Configure Project Specification

1. Product Family & Typology

2. Standoff Cavity Depth (Continuous Service Raceway)

3. Tile Face Typology & Finish

4. Integrated Provisions & Options

Backlit Concealed LED Flush 230V Face Sockets Cat6A / Fiber Outlets DALI-2 Dimming Driver IoT Moisture Telemetry Medical Gas Outlets

Generated Model Code & CSI 3-Part Clause

Ready to paste directly into architectural tender specifications and BIM schedules:

JOM-SRVC-500-ST100-CHARCOAL_SLOTTED-LED-PWR-DATA

SECTION 10 22 19 (Demountable Partitions)
PART 2 — PRODUCTS:
2.01 MODULAR WALL SYSTEM: JOMETRY Architectural Platform
  A. Manufacturer: MACR MAYR India Pvt Ltd (Mumbai, India).
  B. Product Model: JOM-SRVC-500-ST100-CHARCOAL_SLOTTED-LED-PWR-DATA
  C. Baseline Grid: 500 mm × 500 mm precision cassettes.
  D. Mounting: Patented WallClick Node (Die-Cast Zinc & SS304).
  E. Alignment: ±0.25 mm True Position (Conical indexing pins).
  F. Standoff Cavity Depth: 100 mm continuous service raceway.
  G. Demountability: 100% toolless 3-move access, >500 removal cycles.

Comprehensive Platform Range · 4 Typologies

02 Platform Variant Catalogue

Click "Quick Spec" for slide-out technical data drawers

Section 10 · Delivered Projects & References

03 Completed Installations in Mumbai

Manufactured & Delivered by MACR MAYR India Pvt Ltd

Delivered & Handed Over

SAKET WORLD · MUMBAI

Commercial AV Screening Suite Acoustic Wall

180 mm Cavity Standoff Helmholtz absorption with terracotta fluted acoustic tiles, eliminating room modal resonances, flutter echoes, and standing waves.

Typology: Acoustic Control (180mm Cavity) · Status: Delivered & Handed Over

Delivered & Handed Over

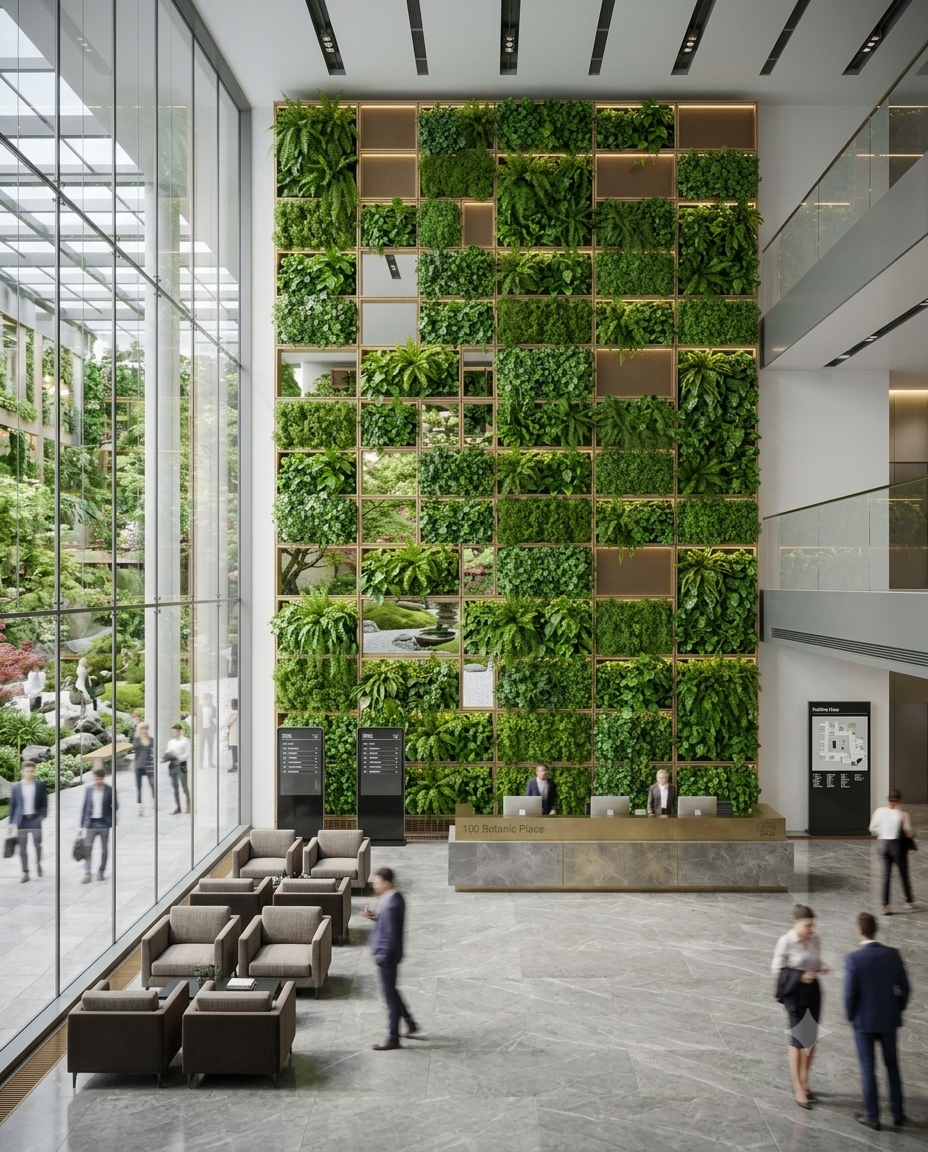

OYSTER HOUSING · MUMBAI

Corporate Headquarters Active Air Bio-Wall (120 m²)

120 m² indoor active biofiltration living wall drawing corporate atrium air through root rhizospheres with 4-layer leak defense and zero on-site gardening.

Typology: Living Bio-Wall (120 m²) · Status: Delivered & Handed Over

COMMISSIONED

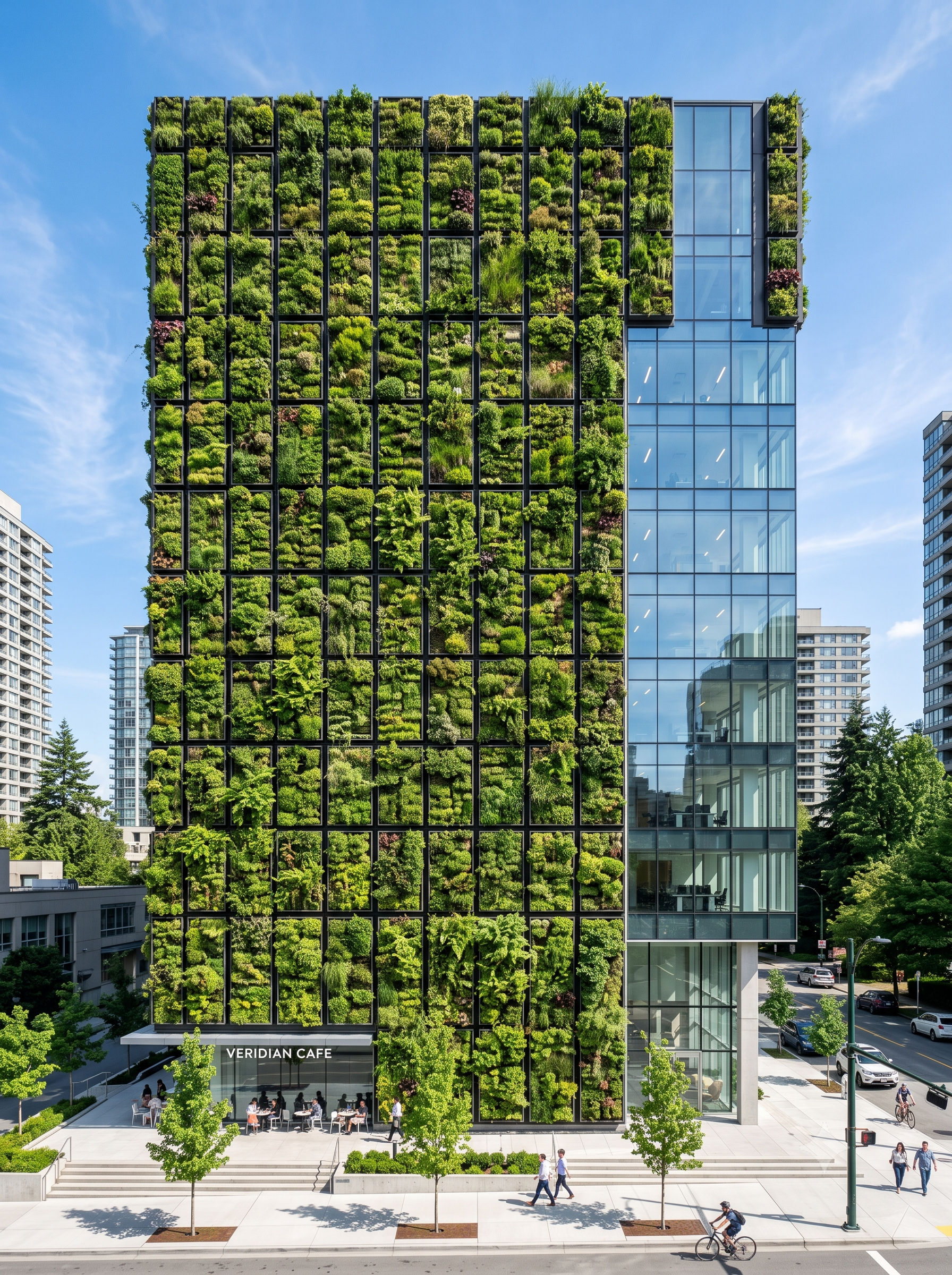

OYSTER HOUSING · MUMBAI

High-Rise Exterior Living Wall Rainscreen (450 m²)

450 m² architectural scale exterior living facade engineered for 2.4 kPa cyclonic wind load, -14°C microclimate thermal attenuation, and 45 L/m² stormwater buffering.

Typology: High-Rise Exterior Living Facade · Status: Commissioned

Delivered & Handed Over

BOMBAY PRESIDENCY CLUB · MUMBAI

Backlit Illuminated Architectural Feature (2700K LED)

Concealed 2700K museum-grade LED illumination integrated behind laser-cut acoustic slots with DALI-2 flicker-free architectural dimming down to 0.1% depth.

Typology: Facade & Light (2700K LED) · Status: Delivered & Handed Over

MACR MAYR INDIA PVT LTD · MUMBAI

Specification & Architectural Technical Consultation

DWG CAD details, Revit BIM 2026 families, acoustic chamber reports, and custom standoff calculations available on request.

MACR MAYR India Pvt Ltd
Mumbai, Maharashtra, India
Direct Project Desk: project@jometry.in
Phone: +91 (022) 6700-DWALL

Request Architectural Consultation

Request custom standoff calculations against your building's MEP services and order material sample boxes:
